tH[NGhXEF[W(ۂ)



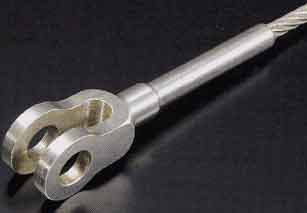

XeX(S)

i Kp[va
(mm)

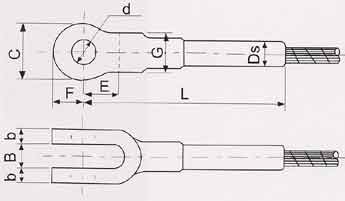

B(mm) b(mm) C(mm) d(mm) E(mm) F(mm) G(mm) Ds(mm) L(mm)
(Ql@)
S-FES-6 6(6.3) 10.5 5 24 13 24 13 16 10 94
S-FES-8 8 14 6 28 16 28 17 18 12 105
S-FES-9 9 16 7 31 18 30 18 20 14 111
S-FES-10 10 17 8 34 19 39 20 23 16 129
S-FES-12 12 20 9 41 23 44 24 28 20 149
S-FES-12.5 12.5 21 10 42 24 46 25 28 20 155
S-FES-14 14 23 11 46 26 50 28 31 22 171
S-FES-16 16 26 12 52 29 54 31 37 26 188
S-FES-18 18 29 14 58 33 59 34 40 28 212
S-FES-20 20 32 15 64 36 64 38 45 32 232
S-FES-22 22(22.4) 36 17 72 41 70 42 49 35 255
S-FES-24 24 38 18 76 43 74 45 54 38 274
S-FES-25 25 40 19 79 45 77 47 55 40 285
S-FES-26 26 41 20 81 46 79 48 56 42 295
S-FES-28 28 44 21 89 50 84 52 62 45 315
S-FES-30 30 47 23 94 53.5 90 56 65 50 338
S-FES-31.5 31.5(32) 50 24 101 57.5 99 59 70 50 362



S(F)

i Kp[va
(mm)
B(mm) b(mm) C(mm) d(mm) E(mm) F(mm) G(mm) Ds(mm) L(mm)
(Ql@)
F-FES-6 6(6.3) 10.5 5 24 13 24 13 16 10 94
F-FES-8 8 14 6 28 16 28 17 18 12 105
F-FES-9 9 16 7 31 18 30 18 20 14 111
F-FES-10 10 17 8 34 19 39 20 23 16 129
F-FES-12 12 20 9 41 23 44 24 28 20 149
F-FES-12.5 12.5 21 10 42 24 46 25 28 20 155
F-FES-14 14 23 11 46 26 50 28 31 22 171
F-FES-16 16 26 12 52 29 54 31 37 26 188
F-FES-18 18 29 14 58 33 59 34 40 28 212
F-FES-20 20 32 15 64 36 64 38 45 32 232
F-FES-22 22(22.4) 36 17 72 41 70 42 49 35 255
F-FES-24 24 38 18 76 43 74 45 54 38 274
F-FES-25 25 40 19 79 45 77 47 55 40 285
F-FES-26 26 41 20 81 46 79 48 56 42 295
F-FES-28 28 44 21 89 50 84 52 62 45 315
F-FES-30 30 47 23 94 53.5 90 56 65 50 338
F-FES-31.5 31.5(32) 50 24 101 57.5 99 59 70 50 362
F-FES-33.5 33.5(32) 53 26 106 60.5 105 63 74 54 384
F-FES-35.5 35.5(36) 56 27 113 64.5 110 67 79 58 404
F-FES-37.5 37.5(38) 60 29 118 67.5 115 70 83 60 426
F-FES-40 40 63 30 125 71.5 121 74 87 65 447
